Pallet Rack Load Capacity: What Indianapolis Warehouse Managers Must Know

Exceeding pallet rack load capacity is one of the leading causes of warehouse rack collapses — and it's almost always preventable. This guide covers everything Indianapolis and Central Indiana warehouse managers need to understand about load ratings, load placards, beam deflection, and the physical factors that determine how much weight your racking can safely hold.

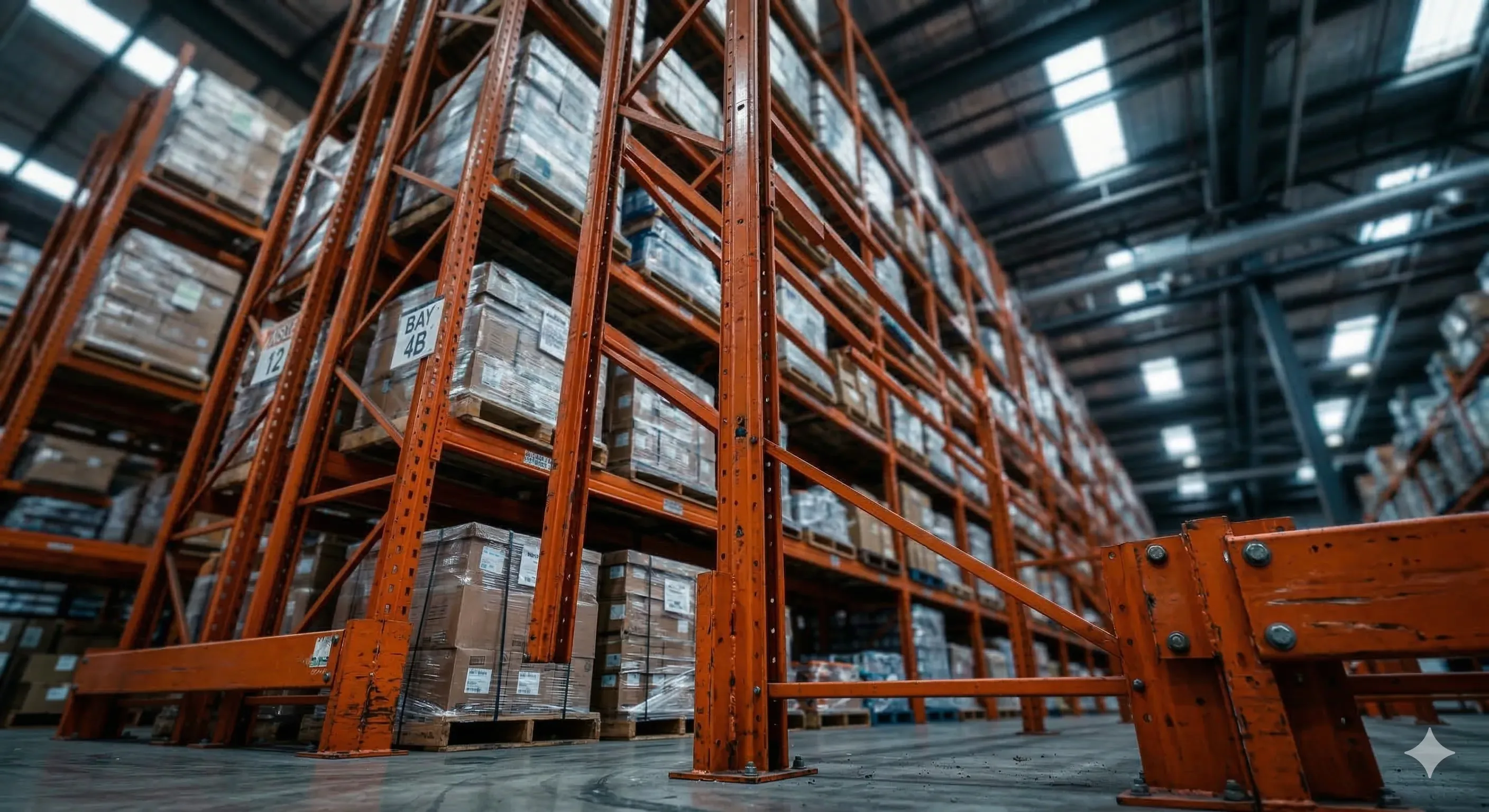

Pallet rack upright columns and load placard in an Indianapolis warehouse

Important Note

This article is for informational purposes. Load capacity determinations for your specific racking system must be made by a qualified engineer. Indy Pallet Racking provides engineering evaluations and load capacity certifications for warehouses throughout Indianapolis and Central Indiana.

Understanding Rack Load Ratings: Beam Capacity vs. Upright Capacity

When you see a load rating on pallet racking, it's important to understand that there are actually two separate capacity figures that work together to determine total safe load:

Beam pair capacity: The maximum uniformly distributed load a pair of horizontal beams can support at a given span and beam level. This is typically measured in pounds per beam level.
Upright frame capacity: The maximum total load the vertical upright columns can safely carry across all beam levels combined. This figure accounts for the cumulative weight the upright must support from floor to top beam.

Both numbers matter. You can have beams rated for 5,000 lbs per level while the upright frame is only rated for 24,000 lbs total — meaning if you load every level to capacity, you'd exceed the frame rating even if no single level is overloaded.

What Factors Determine Load Capacity?

Rack capacity is not a single fixed number — it's the result of several interacting physical and engineering variables:

Beam Span

The longer a beam spans between uprights, the lower its rated capacity. A beam pair spanning 8 feet carries considerably more weight than the same beam spanning 12 feet. This is basic structural engineering — longer spans create greater bending moments under load. When you're comparing rack quotes, pay attention to beam length, not just beam gauge.

Beam and Upright Gauge (Steel Thickness)

Heavier gauge steel components carry more weight. Uprights are typically expressed in gauge (12-gauge is heavier than 16-gauge) or by column cross-section. Beams are rated by the moment of inertia of their cross-section. Swapping in lighter components from a different manufacturer — even if they visually fit — can dramatically reduce capacity and creates a dangerous mixed-spec system.

Load Distribution

Rack capacity ratings assume evenly distributed loads. A single heavy pallet placed off-center on two beams creates a concentrated load that can exceed local beam capacity even if the total weight appears within spec. Pallets with product overhang, oddly shaped loads, or products that bridge across two pallets unevenly all create load distribution problems.

Beam Deflection

Beam deflection — the visible downward bow of loaded beams — is both a structural signal and an aesthetic one. ANSI/RMI standards limit allowable beam deflection to L/180, where L is the span in inches. For a 96-inch span, that means no more than 0.53 inches of deflection at rated load. Beams that deflect more than allowed under load are either overloaded, damaged, or undersized for the application.

In Indianapolis warehouses, beam deflection problems are commonly caused by product weight that was underestimated at system design time — particularly in distribution and manufacturing operations where product weights change over time as product lines evolve.

Upright Height

Taller uprights have lower column capacity than shorter uprights of the same cross-section. Slender, tall columns are more susceptible to buckling under load. This is why a rack system designed for 20-foot storage heights requires heavier upright frames than the same system at 12 feet, even if the load per level is identical.

Floor Anchoring

Load capacity ratings assume the uprights are properly anchored to a concrete floor of adequate strength. Rack that is not anchored, anchored with incorrect hardware, or anchored into deteriorated concrete is operating outside its rated parameters — and significantly increases the risk of tip-over under any lateral force, including minor forklift contact.

Base plate anchoring is a critical inspection point in every rack system. Each upright base plate must have anchor bolts of the specified size and embedment depth torqued to the engineer's specification. In older Indianapolis warehouse facilities, we frequently find uprights with missing anchors, bent anchor bolts from past forklift impacts, or base plates sitting on deteriorated concrete that no longer provides adequate holding strength.

Load Placards: The Legal and Safety Requirement

OSHA 29 CFR 1910.176(e) requires that the maximum safe load for each rack bay be posted in a visible location. This is not optional. Here's what the load placard must include under ANSI/RMI guidelines:

Maximum unit load per beam level (in pounds)
Maximum bay load (total weight the frame can support across all levels)
Maximum single unit weight per position
Required aisle width and minimum beam elevation for ground floor storage

Placards must be mounted at the end of each row at a height visible to forklift operators. They must remain legible — faded, damaged, or missing placards are a citable OSHA violation.

For warehouses running used racking without original documentation, load placards cannot legally be posted until a qualified engineer evaluates the system and certifies load ratings. Our team provides engineering evaluations that result in certifiable load ratings and compliant placard specifications.

Common Load Capacity Mistakes in Indianapolis Warehouses

After inspecting hundreds of rack systems across Indianapolis, Marion County, Hamilton County, and the broader Central Indiana region, these are the load capacity mistakes we see most often:

Using Beam Capacity as Total Bay Capacity

Assuming each level can be loaded to beam capacity regardless of total frame load — a common error that can overload uprights even when no single beam level appears overloaded.

Mixing Rack Components

Replacing damaged components with parts from a different manufacturer without engineering review. Even visually similar components may have different structural ratings.

Ignoring Product Weight Changes

Loading products that are heavier than the original design parameters, particularly after product line changes or shifts in inventory mix.

Damaged Rack Left in Service

Continuing to use rack with bent uprights or damaged beams. A bent upright column can lose 40-80% of its rated capacity depending on the severity of the damage.

When to Get an Engineering Evaluation

You should have a qualified engineer evaluate your racking system's load capacity when:

You're installing used racking without original manufacturer documentation
You've added beam levels or changed the rack configuration since original installation
You're storing products significantly heavier than your original design parameters
You've had any significant forklift impact that may have damaged structural components
Your load placards are missing, damaged, or you can't verify they reflect the actual installed system
You're applying for a building permit (which requires PE-stamped load calculations)

Indy Pallet Racking provides professional rack inspections and engineering evaluations for warehouses throughout Indianapolis and Central Indiana. Call us at (317) 597-6252 to schedule an assessment.
