Carton Flow Rack Systems in Indianapolis, IN
Quality carton flow rack supplied and installed by Indianapolis's trusted warehouse solutions team.
Ready to get started? Get a free, no-obligation quote today.
Gravity-fed case-pick rack — rear-loaded, front-picked, pick-to-light ready, 2–3× the pick velocity of static shelving.
About Carton Flow Rack

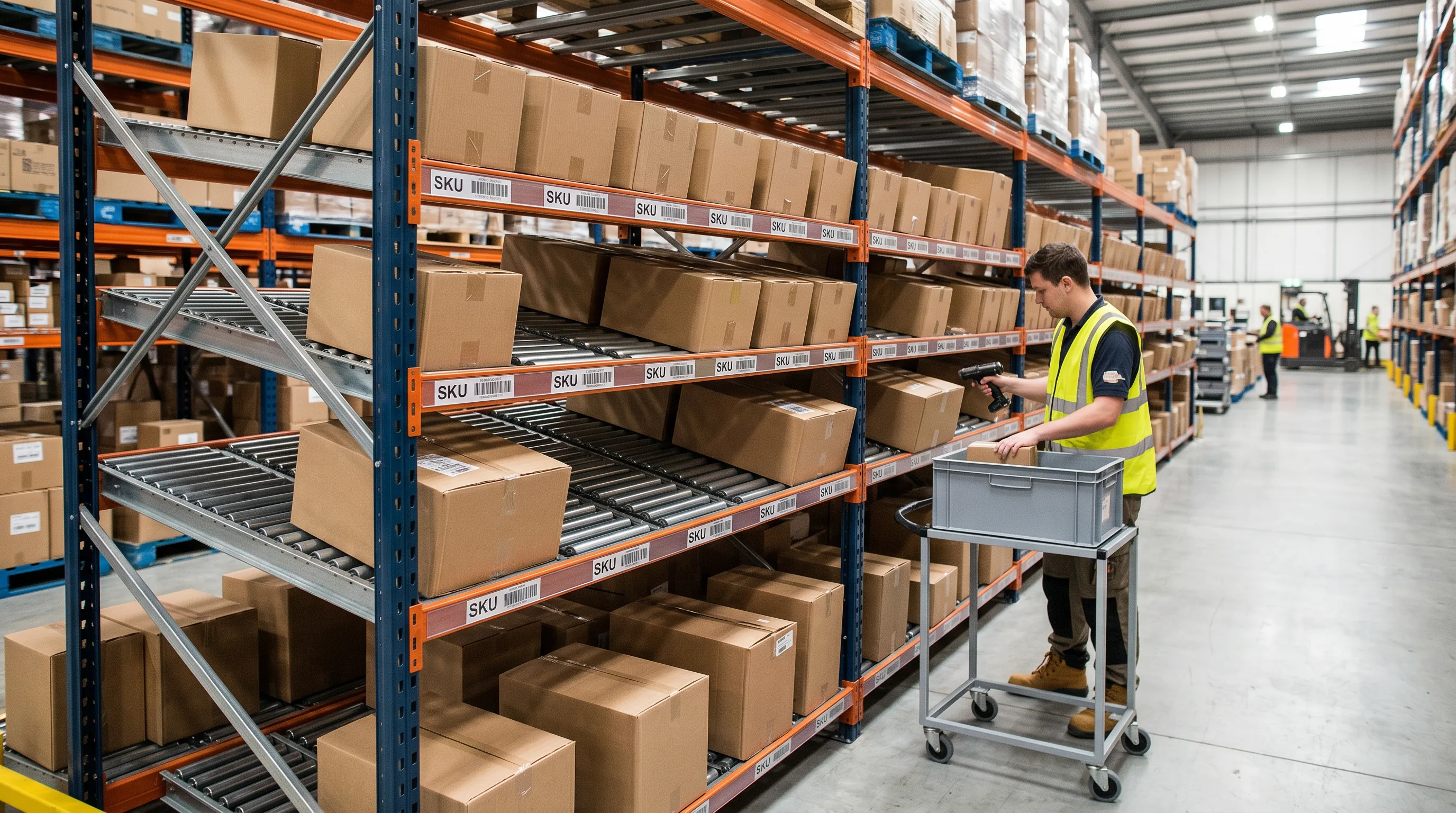

Carton flow rack is a gravity-fed dynamic storage system built for case and carton picking — not full pallets. Cases are loaded from the rear onto inclined roller or skate-wheel tracks and flow forward automatically to a pick face presented at ergonomic waist height. As a picker pulls a carton, the next one rolls into place. Because replenishment happens from the opposite side of the rack, pick operations never pause for restocking — a structural advantage that delivers 2 to 3 times the pick velocity of static shelving for the same operator. Carton flow is the default front-line pick medium for Indianapolis e-commerce fulfillment — the Amazon Plainfield, Whitestown, and Mount Comfort network, the FedEx Indianapolis Hub 3PL cluster, the Salesforce and pharmaceutical case-pick operations, and the automotive and aerospace aftermarket distribution anchored around Allison, Rolls-Royce, and the Subaru/Honda supplier network. Indy Pallet Racking designs and installs carton flow systems integrated with pick-to-light, WMS zones, and takeaway conveyor throughout the Indianapolis metro.
How Carton Flow Rack Works
The mechanics behind the system — and why they matter for your operation.
Rear replenishment
A replenishment operator loads cases onto the rear of the inclined track from a dedicated restock aisle — typically while pickers are actively working the front face on the other side.
Gravity-fed flow
Cases roll forward on steel rollers or plastic skate wheels pitched 3 to 5 percent. A front lip stops the leading case at the pick face, held in position and ready to pick.
Ergonomic pick face
Tracks are typically set at waist height (40–54 inches) in the main pick zone, with secondary levels above and below. Pickers never reach above shoulder or below the knee in the fast-moving zones.
Integrated with pick logic
Carton flow bays are the native home of pick-to-light and put-to-light indicators, WMS pick zones, and carousel-fed takeaway conveyor downstream. The whole pick line is typically designed around the flow face.
When to Choose Carton Flow Rack
- • You pick cases, cartons, or totes — not full pallets — at a high per-picker velocity
- • Replenishment disruption is a measurable cost (pickers waiting for restock)
- • You run pick-to-light, put-to-light, or WMS zone-based picking
- • SKU count is in the hundreds-to-thousands in a zone with high velocity variance
- • Ergonomic risk on static shelving is driving workers' comp claims
When Not to Choose
- • You pick full pallets — use pallet rack instead
- • Your SKU count is small and static shelving is already fast enough
- • Case weight routinely exceeds 100 lbs — check heavy-duty track spec or alternative
- • Your budget targets the lowest-cost shelving and pick velocity is not a constraint
Specifications at a Glance
- Tier configuration
- 3 to 5 tiers typical, 18–36" bay height
- Bay width
- 3 to 10 feet
- Track type
- Full-width steel rollers or plastic/metal skate wheels
- Track pitch
- 3–5% (gravity-feed)
- Carton capacity
- 50–100 lbs per case (typical); up to 250 lbs on heavy-duty tracks
- Pick-face height
- Primary zone typically set at 40–54" for ergonomics
- Replenishment
- From the opposite side of the rack — zero pick disruption
- Integration
- Pick-to-light, put-to-light, WMS zones, takeaway conveyor
- Upright style
- Roll-formed teardrop or structural-channel, carton-flow specific
- Code compliance
- IBC 2021 (Indiana amendments), RMI ANSI MH16.1-2023
Carton Flow vs. Other Case-Pick Storage Media
| Attribute | Static Shelving | Carton Flow | AS/RS Shuttle |
|---|---|---|---|
| Picks/hour per operator | Baseline (1×) | 2–3× | 4–8× |
| SKU density per sq ft | Medium | High | Highest |
| Replenishment disruption | Pickers pause for restock | Zero (rear-load while picking) | Fully automated |
| Ergonomic strain | High (reach, stoop) | Low (waist-height face) | None (goods-to-person) |
| Pick-to-light integration | Retrofit | Native | Native |
| Install time | 1–3 days | 1–2 weeks | 3–6 months |
| Best SKU velocity | Low-medium | Medium-high | High-very high |
| Relative capital cost / SKU | $ | $$ | $$$$$ |
Where Carton Flow Rack Fits in the Indianapolis Metro
Specific industries across Indianapolis and Indiana where this system pays off.
E-commerce fulfillment — Plainfield, Whitestown, Mount Comfort, Greenwood
Amazon's multi-facility Indianapolis network (Plainfield, Whitestown, Mount Comfort, Greenwood, Whiteland) and the FedEx Indianapolis Hub-adjacent 3PL fulfillment centers use carton flow as the main pick-face medium for small-parcel order picking. Rear replenishment lets the pick wave run uninterrupted during peak.
Automotive & aerospace aftermarket — Indianapolis, Columbus, Speedway
Allison Transmission (Indianapolis HQ), Rolls-Royce Indianapolis, Cummins (Columbus IN), and the tier-2 aftermarket supply network use carton flow for the middle SKU tier of serviceable parts — fast movers on the pick face, slower SKUs on adjacent static shelving.
Pharmaceutical case-pick — Indianapolis, Greenfield
Eli Lilly (Indianapolis HQ) and Elanco (Greenfield) use carton flow for fast-moving finished pharmaceutical and animal health SKUs in case-pick zones, paired with pick-to-light for lot-level accuracy requirements.
Auto parts distribution — Indianapolis, Plainfield, Anderson
NAPA regional operations, AutoZone DC, and O'Reilly Auto Parts regional warehouses use carton flow for the middle SKU tier — fast movers on the pick face, slower SKUs on adjacent static shelving.
Foodservice & grocery case-pick — Indianapolis, Mooresville, Tipton
Sysco Indianapolis case-pick zones, US Foods Mooresville, and Meijer (Tipton) grocery case-pick operations use carton flow for high-velocity shelf-stable SKUs where full pallet picking does not make sense but static shelving can't keep up.
Product Features
- 3 to 5 tier configurations with 18–36" bay heights
- Full-width steel roller or skate-wheel track options
- Ergonomic pick-face height tuning in the primary zone
- Rear replenishment aisle — zero pick-face disruption
- Pick-to-light, put-to-light, and WMS zone integration ready
- Compatible with takeaway conveyor and sortation integration
- Engineered to IBC 2021 (Indiana amendments) and RMI ANSI MH16.1-2023
Benefits for Your Business
Frequently Asked Questions
Real answers for buyers researching carton flow rack in the Indianapolis metro area.
What weight can a carton flow track handle?
Does carton flow require pick-to-light?
Can carton flow handle bagged or irregular cartons?
How much replenishment aisle do I need?
Can I mix carton flow with pallet rack?
What does a typical Indianapolis carton flow install cost?
